Frameless Cabinet Specs
Jump To
Specifications & FAQ
Tap a section to jump down the page.

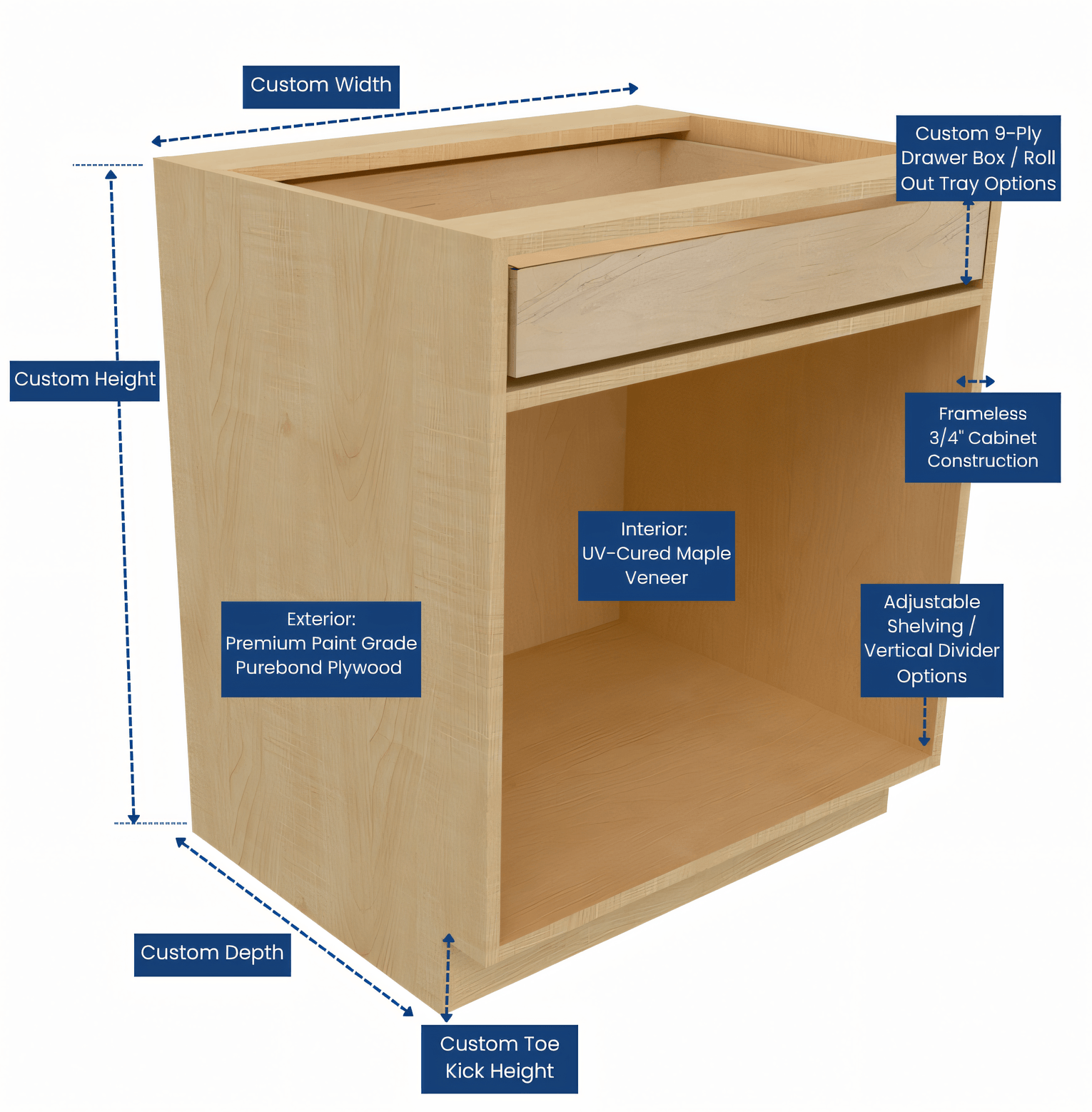

Cabinet Box Specs

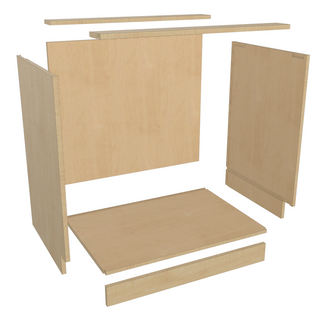

Cabinet Box Construction, Interior Finish, and Materials
Global standards apply to all frameless cabinet products unless otherwise noted.
2. Global Construction Standards
Applies to all frameless cabinet products unless otherwise noted.
Construction Type
- European-style frameless (full-access) cabinet construction
- Full overlay compatible
- Built-to-order
- Ships Ready-to-Assemble (RTA) โ Yes
- Screw construction โ standard wood screws
Cabinet Case
- 3/4" plywood cabinet-grade case
- CARB 2 compliant
Recommendation: End panels are recommended for all exposed cabinet sides after installation.
3. Interior Finish
| Interior Spec | Standard | Options / Notes |
|---|---|---|
| Interior Material | UV Finished Maple Veneer | UV maple is standard. Interior can be matched to the selected wood species. |
| Finish | Clear UV-cured, baked-on finish | No VOC |
| Interior Availability | Interior species can match the wood species | White Melamine interiors match White Melamine exteriors. |
4. Exterior
Exterior Condition
- Cabinet exterior and face are raw wood
Edge Banding
- Edge banding matches selected species
- Thickness: 0.5 mm
5. Available Cabinet Materials (Carcass / Exterior)
Standard online option: Paint Grade plywood.
Custom order: Any material that is not Paint Grade plywood must be custom ordered.
To request a custom species, please work with a rep by filling out our free form:
Free Quote & Design Consultation.
Note: White Melamine is an exterior carcass optionโinterior will be White Melamine.
Paint Grade
Standard online option
Maple
Custom order โ work with a rep
Cherry
Custom order โ work with a rep
Walnut
Custom order โ work with a rep
Red Oak
Custom order โ work with a rep
White Oak
Custom order โ work with a rep
Alder
Custom order โ work with a rep
Hickory
Custom order โ work with a rep
White Melamine
Custom order โ exterior + matching interior

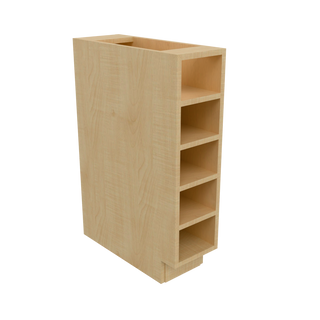

Optional Add-Ons
Customize Your Cabinet Configuration
Choose add-ons during configuration to match your layout, storage needs, and install preferences.
Toe Kick Specifications
Toe kick skin is included and installed separately for a clean finish.
| Item | Standard / Included | Optional Configurations | Notes |
|---|---|---|---|
| Toe Kick Coverage | Toe kick is recommended to be covered with a toe kick skin (included) | N/A | Skin is a separate piece the customer installs. |
| Toe Kick Skin Thickness | 1/4" | N/A | Provides a clean finished toe-kick appearance. |
| Custom Toe Kick Height | Selectable |
3"
3.5"
4"
4.5"
5"
Flush
|
Choose based on flooring thickness, trim plan, and desired reveal. |
| Custom Toe Kick Depth | 3" | None | Depth is fixed at 3". |
| No Toe Kick | Optional | Application-dependent | Used when a toe kick is not needed for the install design. |
Storage Add-Ons
Add organization features based on how you actually use your cabinets.
Roll-Out Trays
Same construction as drawer boxes: dovetail build, like a drawer without a drawer front.
| Selection | Available Quantities |
|---|---|
| Roll-Out Trays |
0
1
2
3
|
Vertical Divider Options
Great for trays, baking sheets, cutting boards, and upright storage.
| Selection | Available Quantities |
|---|---|
| Vertical Dividers |
0
1
2
3
4
|
Shelving Options
Add shelves to increase flexibility and keep interiors organized.
| Selection | Available Quantities |
|---|---|
| Shelves |
0
1
2
3
4
|
Doors & Drawer Fronts
Door styles, hinge boring, and drawer front configurations are selected separately based on the cabinet type youโre building.
Hardware
Hardware Specifications
Premium European hardware is standard across the frameless cabinet line and included where applicable.
Hinges (Door Cabinets)
- Blum frameless hinges
- Fully adjustable
- Soft close
- Included where doors are applicable
Drawer Glides (Drawer Cabinets)
- Blum Blumotion
- Full extension
- Undermount
- Soft close
- Included where drawers are applicable

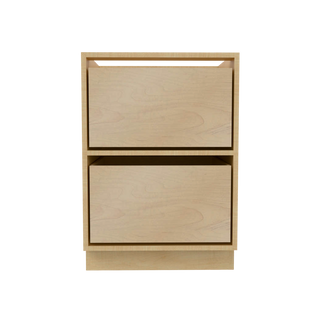

Drawer System
Drawer Box Construction
Applies to all frameless cabinet products that include drawers.
- ยฝโณ thick 9-ply Baltic Birch plywood
- Pre-finished with clear UV-cured coating
- Dovetailed drawer box construction
- ยผโณ thick fully captured drawer bottom
- Rated for 100 lb load capacity
- Fully assembled and sanded
What This Means for You
- Long-term durability for everyday kitchen and bath use
- Smooth operation with premium undermount glides
- No on-site drawer assembly required
- Professional-grade construction standard across the line
Assembly & Install
RTA + Installation Notes
Cabinets ship ready-to-assemble (RTA). Follow these guidelines for a strong, square build and a clean finished install.
Ships Flat-Packed (RTA)
Cabinets arrive flat-packed and require assembly prior to installation.
Glue + Screw for Best Results
We recommend gluing all joints with wood glue during assembly (glue-and-screw) for maximum strength.
Screw Construction = Strong, Square Assembly
Screw construction helps cabinets pull tight and stay square throughout assembly and installation.
Visible Construction Holes Are Normal
Construction holes on cabinet sides are expected and part of standard assembly.
For Exposed Surfaces
- End panels are recommended for exposed cabinet sides.
Pro Tip
- Dry-fit components first, then glue and screw for the final assembly.
- Check for square during assembly to ensure doors and drawers align cleanly.
| Product Name | Cabinet Type / Category | Standard W | Standard H | Standard D | Min W | Max W | Min H | Max H | Min D | Max D |
|---|---|---|---|---|---|---|---|---|---|---|

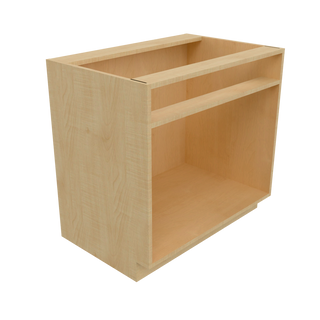

| Standard Base Cabinets (Doors & Drawers) | ||||||||||
| Frameless Sink Base Cabinet | Base | 36 | 34 1/2 | 24 | 18 | 48 | 12 | 48 | 3.5 | 48 |
| Frameless Farm Sink Base Cabinet โ Sink Base with Apron | Base | 36 | 34 1/2 | 24 | 18 | 48 | 12 | 48 | 12 | 48 |
| Frameless Base Cabinet- Single Door with Single Drawer | Base | 18 | 34 1/2 | 24 | 8 | 25.5 | 12 | 48 | 12 | 48 |
| Frameless Base Cabinet โ Pair Doors with Single Drawer | Base | 30 | 34 1/2 | 24 | 18 | 37.5 | 12 | 48 | 12 | 48 |
| Frameless Base Cabinet โ Pair Doors with Pair Drawers | Base | 36 | 34 1/2 | 24 | 18 | 48 | 12 | 48 | 12 | 48 |
| Frameless Base Cabinet โ Pair Full Height Doors | Base | 36 | 34 1/2 | 24 | 18 | 48 | 12 | 48 | 3.5 | 48 |
| Drawer Base Cabinets | ||||||||||
| Frameless Base Cabinet โ Two Equal Drawers | Base | 24 | 34 1/2 | 24 | 8 | 48 | 12 | 36 | 12 | 48 |
| Frameless Base Cabinet โ Three Equal Drawers | Base | 24 | 34 1/2 | 24 | 8 | 48 | 12 | 48 | 12 | 48 |
| Frameless Base Cabinet โ Four Equal Drawers | Base | 24 | 34 1/2 | 24 | 8 | 48 | 12 | 48 | 12 | 48 |
| Frameless Base Cabinet โ Three Drawer Bank 1-2 | Base | 24 | 34 1/2 | 24 | 18 | 48 | 12 | 48 | 12 | 48 |
| Specialty Base Cabinets | ||||||||||
| Frameless Base Cabinet โ Cooktop with Drawers | Base | 36 | 34 1/2 | 24 | 8 | 48 | 12 | 48 | 12 | 48 |
| Frameless Base Cabinet โ Full Height Door Tray Base | Base | 9 | 34 1/2 | 24 | 4.5 | 25.5 | 12 | 48 | 3.5 | 48 |
| Frameless Base Cabinet โ 6 Inch Wine Cubby | Base | 6 | 34 1/2 | 24 | 6 | 6 | 12 | 48 | 3.5 | 24 |
| Frameless Base Cabinet โ 9 Inch Wine Cubby | Base | 9 | 34 1/2 | 24 | 9 | 9 | 12 | 48 | 3.5 | 24 |
| Frameless Desk Drawer Cabinet | Base | 30 | 30 1/2 | 21 | 8 | 48 | 4 | 12 | 12 | 48 |
| Frameless Mudroom Bench Cabinet โ Single Door or Single Drawer | Base | 43 | 16.5 | 24 | 8 | 25.5 | 12 | 48 | 12 | 48 |
| Corner & Blind Corner Base Cabinets | ||||||||||
| Frameless Base Cabinet โ 45 Degree Corner Lazy Susan | Base | 36 | 34 1/2 | 36 | 27 | 48 | 12 | 48 | 27 | 48 |
| Frameless Base Cabinet โ 90 Degree Corner Lazy Susan | Base | 36 | 34 1/2 | 36 | 27 | 48 | 12 | 48 | 27 | 48 |
| Frameless Base Cabinet โ Blind Corner Left | Base | 48 | 34 1/2 | 24 | 33 | 48 | 12 | 48 | 12 | 48 |
| Frameless Base Cabinet โ Blind Corner Right | Base | 48 | 34 1/2 | 24 | 33 | 48 | 12 | 48 | 12 | 48 |
| Panels | ||||||||||
| Frameless Base End Panel | Base | 0.75 | 34 1/2 | 24 3/4 | 0.75 | 0.75 | 12 | 48 | 3.375 | 48 |
| Frameless Base Panel Back โ Frame and Panel | Base | 48 | 34 1/2 | 0.75 | 0.75 | 0.75 | 12 | 48 | 3.375 | 48 |
| Product Name | Cabinet Type / Category | Standard W | Standard H | Standard D | Min W | Max W | Min H | Max H | Min D | Max D |
|---|---|---|---|---|---|---|---|---|---|---|

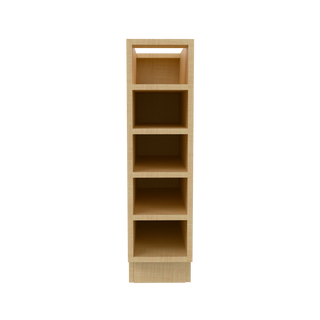

| Tall Utility / Pantry Cabinets | ||||||||||
| Frameless Tall Cabinet โ Single Doors | Tall | 24 | 90 | 24 | 6 | 25.5 | 12 | 96 | 3.5 | 48 |
| Frameless Tall Cabinet โ Pair Doors | Tall | 30 | 90 | 24 | 6 | 48 | 12 | 96 | 3.5 | 48 |
| Appliance Tall Cabinets | ||||||||||
| Frameless Tall Cabinet โ Single Oven | Tall | 27 | 90 | 24 | 24 | 48 | 12 | 96 | 24 | 48 |
| Frameless Tall Cabinet โ Double Oven with Drawer | Tall | 32 | 90 | 24 | 24 | 48 | 12 | 96 | 24 | 48 |
| Frameless Tall Cabinet โ Refrigerator Cabinet | Tall | 40 | 90 | 24 | 18 | 49.5 | 12 | 96 | 3.5 | 48 |
| Tall Panels | ||||||||||
| Frameless Tall End Panel | Tall | 0.75 | 84 | 24 3/4 | 0.75 | 0.75 | 12 | 96 | 3.5 | 48 |
| Frameless Tall Panel Back โ Frame and Panel | Tall | 30 | 84 | 0.75 | 0.75 | 0.75 | 12 | 48 | 12 | 48 |
| Product Name | Cabinet Type / Category | Standard W | Standard H | Standard D | Min W | Max W | Min H | Max H | Min D | Max D |
|---|---|---|---|---|---|---|---|---|---|---|

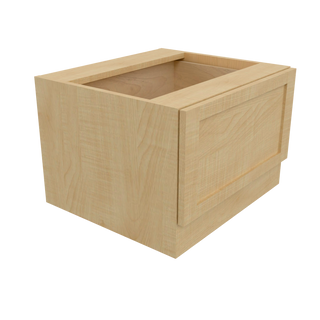

| Standard & Deep Wall Cabinets | ||||||||||
| Frameless Wall Cabinet โ Single Door | Wall | 18 | 36 | 12 | 4.5 | 25.5 | 12 | 48 | 3.5 | 48 |
| Frameless Wall Cabinet โ Pair Doors | Wall | 30 | 36 | 12 | 12 | 48 | 12 | 48 | 3.5 | 48 |
| Frameless Wall Cabinet โ 24 Inch Deep | Wall | 39 | 36 | 24 | 12 | 48 | 9 | 48 | 3.5 | 48 |
| Corner Wall Cabinets | ||||||||||
| Frameless Wall Cabinet โ 45 Degree Corner | Wall | 24 | 36 | 24 | 27 | 27 | 12 | 48 | 3.5 | 27 |
| Frameless Wall Cabinet โ 90 Degree Corner | Wall | 24 | 36 | 24 | 12 | 24 | 12 | 48 | 3.5 | 24 |
| Frameless Wall Cabinet โ Blind Corner Left | Wall | 36 | 36 | 12 | 18 | 48 | 9 | 48 | 3.5 | 48 |
| Frameless Wall Cabinet โ Blind Corner Right | Wall | 36 | 36 | 12 | 18 | 48 | 9 | 48 | 3.5 | 48 |
| Open Wall Cabinets | ||||||||||
| Frameless Wall Cabinet โ Open Shelves | Wall | 36 | 36 | 12 | 4.5 | 36 | 9 | 48 | 3.5 | 48 |
| Panels & Backs | ||||||||||
| Frameless Wall End Panel | Wall | 0.75 | 30 | 12 3/4 | 0.75 | 0.75 | 9 | 48 | 3.5 | 48 |
| Frameless Wall Panel Back | Wall | 48 | 36 | 0.75 | 0.75 | 0.75 | 9 | 48 | 3.5 | 48 |
| Product Name | Cabinet Type / Category | Standard W | Standard H | Standard D | Min W | Max W | Min H | Max H | Min D | Max D |
|---|---|---|---|---|---|---|---|---|---|---|
| Vanity Sink Bases | ||||||||||
| Frameless Vanity Sink Base Cabinet | Vanity | 30 | 30 1/2 | 21 | 12 | 48 | 12 | 48 | 18 | 48 |
| Drawer Storage | ||||||||||
| Frameless Vanity Cabinet โ Drawer Bank | 3 Drawer Vanity | Vanity | 18 | 30 1/2 | 21 | 8 | 48 | 12 | 48 | 12 | 48 |
| Frameless Vanity Cabinet Drawer Combo | Vanity | 36 | 30 1/2 | 21 | 36 | 54 | 12 | 48 | 18 | 45 |
| ADA Vanity | ||||||||||
| Frameless ADA Vanity Cabinet โ Pair Doors | Vanity | 30 | 32 | 21 | 8 | 48 | 12 | 48 | 12 | 48 |
| Product Name | Cabinet Type / Category | Standard W | Standard H | Standard D | Min W | Max W | Min H | Max H | Min D | Max D |
|---|---|---|---|---|---|---|---|---|---|---|
| Fillers (Spacing Components) | ||||||||||
| Frameless Filler โ 36 Inch | Filler | 3 | 36 | 0.75 | 3 | 3 | 36 | 36 | 0.75 | 0.75 |
| Frameless Filler โ 48 Inch | Filler | 3 | 48 | 0.75 | 3 | 3 | 48 | 48 | 0.75 | 0.75 |
| Frameless Filler โ 96 Inch | Filler | 3 | 96 | 0.75 | 3 | 3 | 96 | 96 | 0.75 | 0.75 |
FAQ
Frameless Cabinet Box Specs โ FAQ
Click any question to expand the answer. This FAQ covers construction standards, interior/exterior materials, RTA assembly, installation planning, exposed surfaces, toe kicks, add-ons, hardware, drawer boxes, and common scenarios.
What Youโre Buying (Cabinet Box vs Doors/Fronts)
Stops the most common customer confusion before it happens.
1
When I order a cabinet, am I buying the box, the doors, and the drawer fronts?
Whatโs included vs what may be selected separately depending on the product.
โ
These products are primarily cabinet boxes (carcasses) that ship RTA (flat-packed). Doors and drawer fronts are part of the visible โfinish layerโ and may be selected separately as add-ons depending on the cabinet configuration and the customerโs style/finish plan.
- Cabinet box: the structural shell built from 3/4" cabinet-grade plywood.
- Doors/drawer fronts: the visible surfaces that complete the final design (often selected to match style/finish).
- Hardware: included where applicable (hinges on door cabinets; glides on drawer cabinets).
Simple rule: If a cabinet has doors, it uses hinges. If it has drawers, it uses drawer glides. Those are included where applicable.
2
What does โfull overlay compatibleโ mean?
Why it matters for the finished look and door/drawer front planning.
โ
โFull overlay compatibleโ means the cabinet box is designed to work with full overlay doors and drawer fronts, which cover most of the cabinet edge for a more modern, continuous look.
- Visual: cleaner lines and a more seamless run of cabinetry.
- Practical: frameless + full overlay typically offers greater interior access than framed cabinetry.
Global Construction Standards (Applies Across Line Unless Noted)
Core construction, cabinet case material, compliance, and expected assembly characteristics.
1
What is the construction type?
Frameless, full overlay compatible, built-to-order, RTA.
โ
Construction
- Type
- European-style frameless (full-access) cabinet construction
- Overlay
- Full overlay compatible
- Production
- Built-to-order
- Shipping
- Ready-to-Assemble (RTA)
Fastening
- Method
- Screw construction
- Screws
- Standard wood screws
- Result
- Strong, square assembly when properly assembled
2
What is the cabinet case made from?
Case thickness and compliance details.
โ
Cabinet Case
- Material
- 3/4" cabinet-grade plywood case
- Compliance
- CARB 2 compliant
What That Means
- Durability
- Sturdy cabinet box foundation for daily use
- Planning
- Supports long-term alignment when installed and adjusted correctly
3
I see holes on the cabinet sidesโare these normal?
Construction holes visibility and what to do when sides are exposed.
โ
Yes. Construction holes will be visible on unfinished cabinet sides after assembly. This is normal for RTA frameless construction.
- If the side will be visible after installation: finished end panels are recommended for exposed cabinet sides.
- If the side is between cabinets/walls: holes are typically not visible after installation.
Interior Finish (Standard Across Line) + Interior Matching
Standard UV maple interior, matching options, and White Melamine behavior.
1
What is the standard interior across the cabinet line?
Exact material + finish + VOC detail.
โ
Interior Material
- Standard
- UV finished maple veneer interior
- Finish
- Clear UV-cured, baked-on finish
- VOC
- No VOC
Micro-Explanation
- UV-cured
- Finish is cured using UV light for consistency and durability
- Customer benefit
- Smooth, wipeable interior surface
2
Can the interior match the selected wood species?
When customers typically want matching and why.
โ
Yesโinterior species can match the selected wood species (option-based). Customers typically choose interior matching when interiors will be highly visible.
- Most common reasons: tall pantry cabinets, glass fronts, open shelving, display cabinetry.
- When standard is usually fine: typical closed base/wall cabinets.
3
What happens if I choose White Melamine for the carcass?
Exact rule customers ask about.
โ
White Melamine is an exterior carcass option. When selected, the interior will be White Melamine.
- Customer benefit: bright, clean interior and a consistent look.
- Planning note: confirm whether the customer wants White Melamine across the entire project or only in certain areas.
Exterior (Carcass Face & Visible Surfaces) + Edge Banding
What โraw woodโ means and how edge banding is handled.
1
Is the cabinet exterior finished or raw?
What customers should expect out of the box.
โ
The cabinet exterior and face are raw wood.
- If a surface is hidden: raw exterior is typically fine.
- If a surface is visible: plan finished end panels/skins for a clean final result.
2
Does edge banding match the selected species?
Thickness and matching details.
โ
Edge Banding
- Match
- Matches selected species
- Thickness
- 0.5 mm
Customer Impact
- Visual finish
- Cleaner edge appearance on visible surfaces
- Coordination
- Helps edges coordinate with the chosen carcass species
Available Cabinet Materials (Carcass / Exterior) + Swatches
Customer-friendly list + material swatch images.
1
Which materials can I choose for the exterior carcass?
Paint Grade is standard online; other species are custom order.
โ
Standard online option: Paint Grade plywood.
Custom order: Any material that is not Paint Grade plywood must be custom ordered.
To request a custom species, work with a rep by filling out our free form:
Free Quote & Design Consultation.
- Paint Grade (standard online option)
- Maple (custom order)
- Cherry (custom order)
- Walnut (custom order)
- Red Oak (custom order)
- White Oak (custom order)
- Alder (custom order)
- Hickory (custom order)
- White Melamine (custom order) (exterior option; interior will be White Melamine)
Paint Grade (Standard)
Cherry (Custom Order)
Alder (Custom Order)
Hickory (Custom Order)
Maple (Custom Order)
Red Oak (Custom Order)
Walnut (Custom Order)
White Melamine (Custom Order)
White Oak (Custom Order)
Quick reminder: Any material that is not Paint Grade plywood must be custom ordered. To get started, work with a rep via our free form.
Micro note: Swatches show general tone/character. Natural wood will vary from board to board and from swatch to final product.
RTA + Installation Notes
Assembly method, glue recommendation, and whatโs โnormalโ during install.
1
Do cabinets ship assembled?
Flat-packed shipment and what customers need to do.
โ
Cabinets ship flat-packed and require assembly.
2
Whatโs the recommended way to assemble for best strength?
Glue + screw and why it matters.
โ
We recommend all joints be glued with wood glueโglue and screw. Screw construction supports a strong, square assembly when assembled carefully.
- Why glue: adds rigidity and long-term stability.
- Why square: easier installation and better door/drawer alignment.
3
Is it normal to see construction holes after assembly?
Yesโwhat to do for exposed surfaces.
โ
Visible construction holes are normal and expected.
Finished end panels and skins are recommended for all exposed surfaces to create a finished appearance.
Hardware Specifications (Included Where Applicable)
Hinges for doors; drawer glides for drawers.
1
Which hinges are included for door cabinets?
Brand, adjustability, soft close.
โ
- Blum frameless hinges
- Fully adjustable
- Soft close
- Included where doors are applicable
2
Which drawer glides are included for drawer cabinets?
Blumotion, undermount, full extension, soft close.
โ
- Blum Blumotion
- Full extension
- Undermount
- Soft close
- Included where drawers are applicable
Drawer Box Construction (Applies to Cabinets With Drawers)
Material, joinery, bottom, finish, capacity, and what โcapturedโ means.
1
What are the drawer boxes made from and how are they built?
Full spec list in plain English.
โ
- 1/2" thick 9-ply Baltic Birch plywood
- Pre-finished (UV clear coat, maple tone)
- Dovetailed construction
- 1/4" thick fully captured drawer bottom
- 100 lb load capacity
- Fully assembled and sanded
Micro clarity: โFully capturedโ means the drawer bottom sits in grooves, improving strength and reducing bottom flex over time.
Optional Add-Ons
Toe kick configurations, roll-out trays, vertical dividers, shelving, and full overlay fronts.
1
Toe kick: what is the toe skin and how thick is it?
Separate piece customers install; thickness detail.
โ
Toe kick is recommended to be covered with a toe kick skin. The toe skin is a separate piece the customer installs.
- Toe skin thickness: 1/4"
2
What toe kick height options are available?
Custom height selections and special โflushโ option.
โ
- 3"
- 3.5"
- 4"
- 4.5"
- 5"
- Flush
Note: Custom toe kick depth is not offered (always 3"). โNo toe kickโ may be available depending on application.
3
How many roll-out trays can I add?
Construction style + quantity options.
โ
Roll-out trays are built like drawer boxes (dovetail construction) and function like a drawer without a drawer front.
- 0
- 1
- 2
- 3
4
How many vertical dividers can I add?
Great for trays, pans, cutting boards; options listed.
โ
- 0
- 1
- 2
- 3
- 4
5
How many shelves can I add?
Shelf count options and how customers typically decide.
โ
- 0
- 1
- 2
- 3
- 4
Micro tip: More shelves = more โzonesโ for smaller items. Fewer shelves = taller storage zones for bulky items.
6
Do you offer full overlay doors and drawer fronts?
Yesโfull overlay is the standard compatibility for this line.
โ
Yesโthis frameless cabinet line is full overlay compatible, and customers often select full overlay doors/drawer fronts to create a seamless modern look across the entire project.
