This Illinois DIYer Builds Custom Laundry Built-Ins for Under $1,100
Transforming a laundry space into something beautiful and functional doesn’t have to come with a designer price tag.
Mike, a homeowner from McHenry, Illinois, took on the challenge of building his own laundry custom built-ins — and the result is a clean, polished space that looks completely custom for under $1,100.
By pairing handcrafted cabinet boxes with CabinetNow’s Revere cabinet doors, Mike created a bright, timeless laundry built-in that maximizes storage while elevating everyday design.
Turning a Laundry Nook Into a Custom Built-In

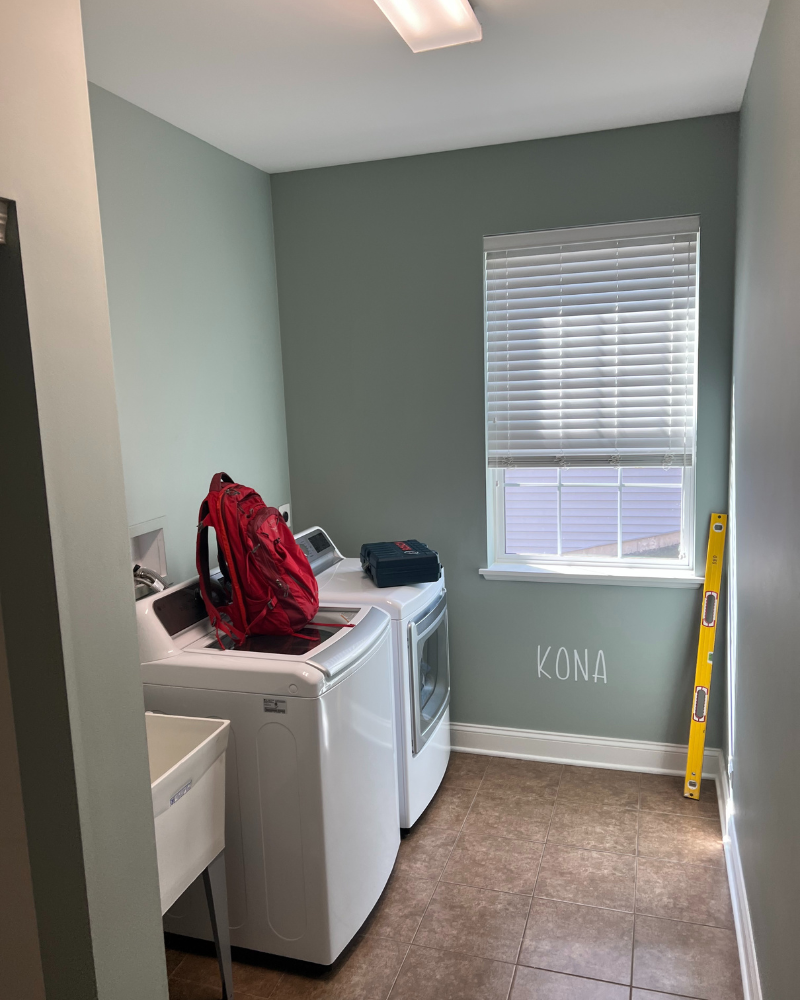

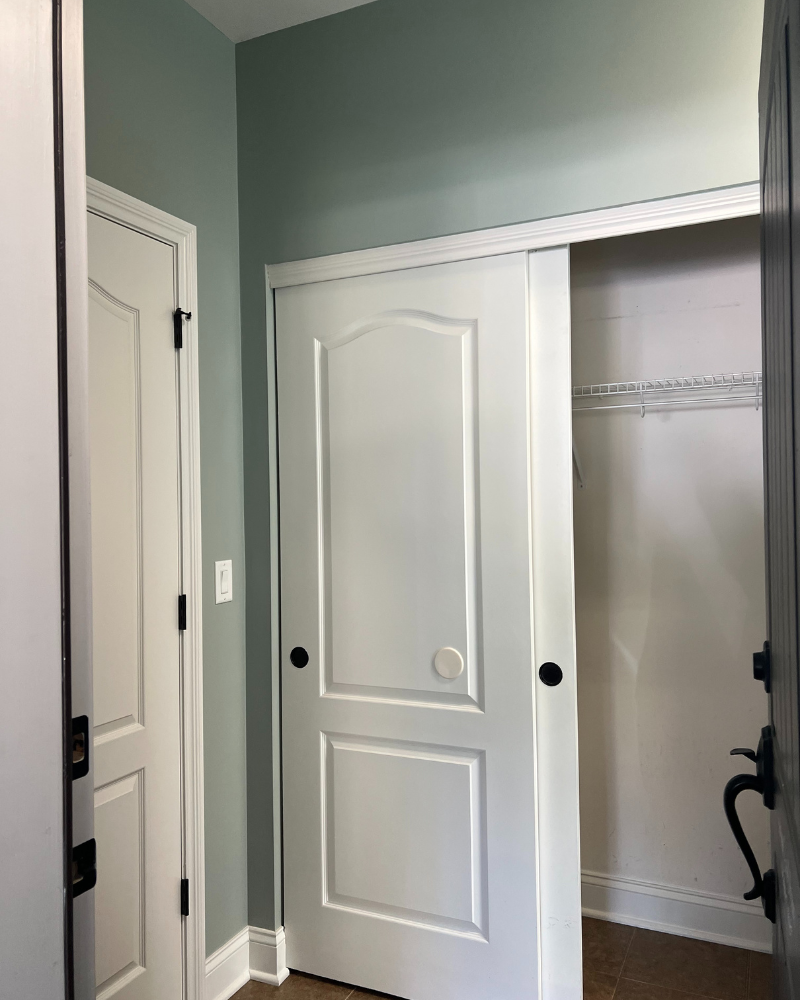

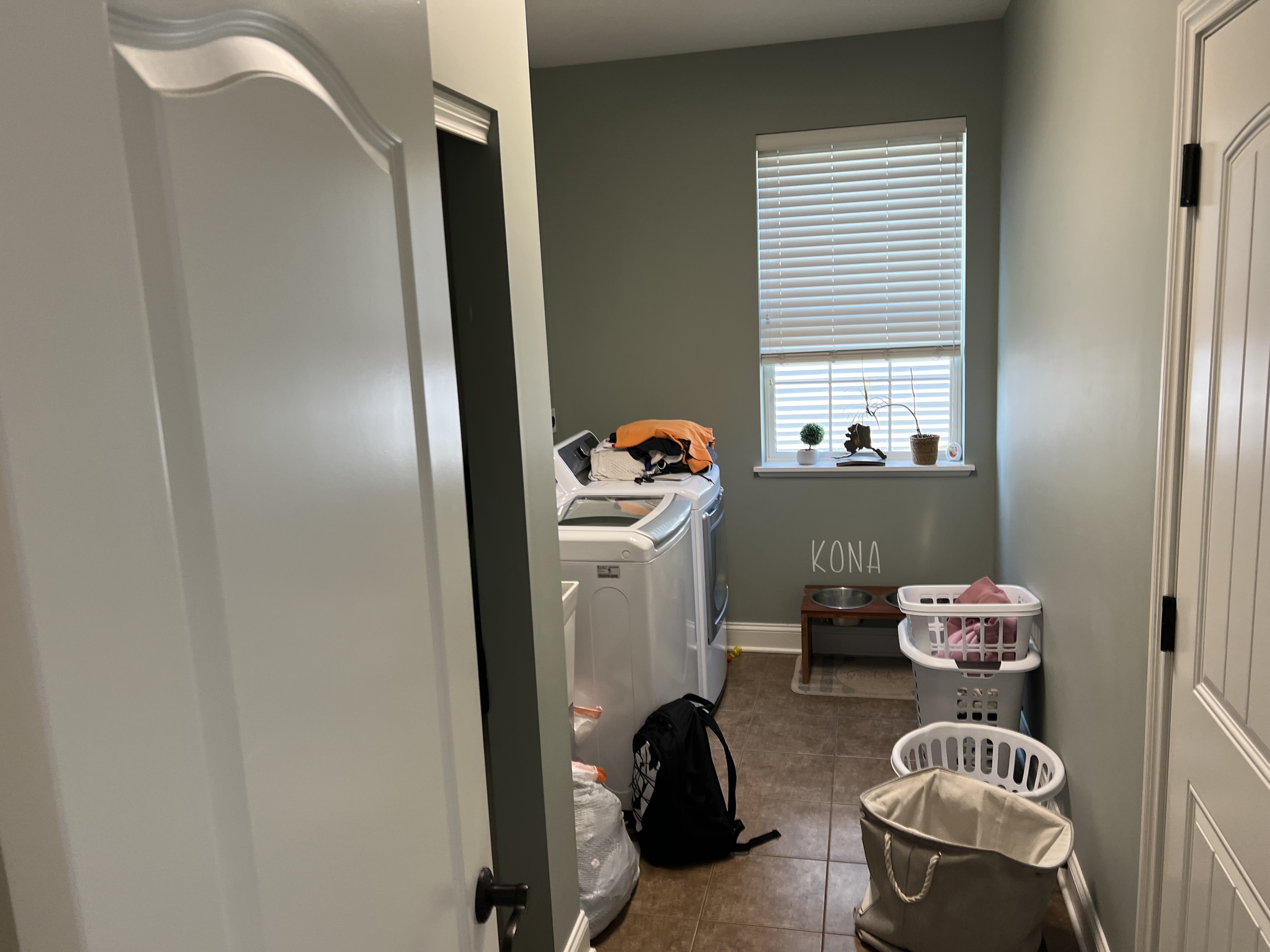

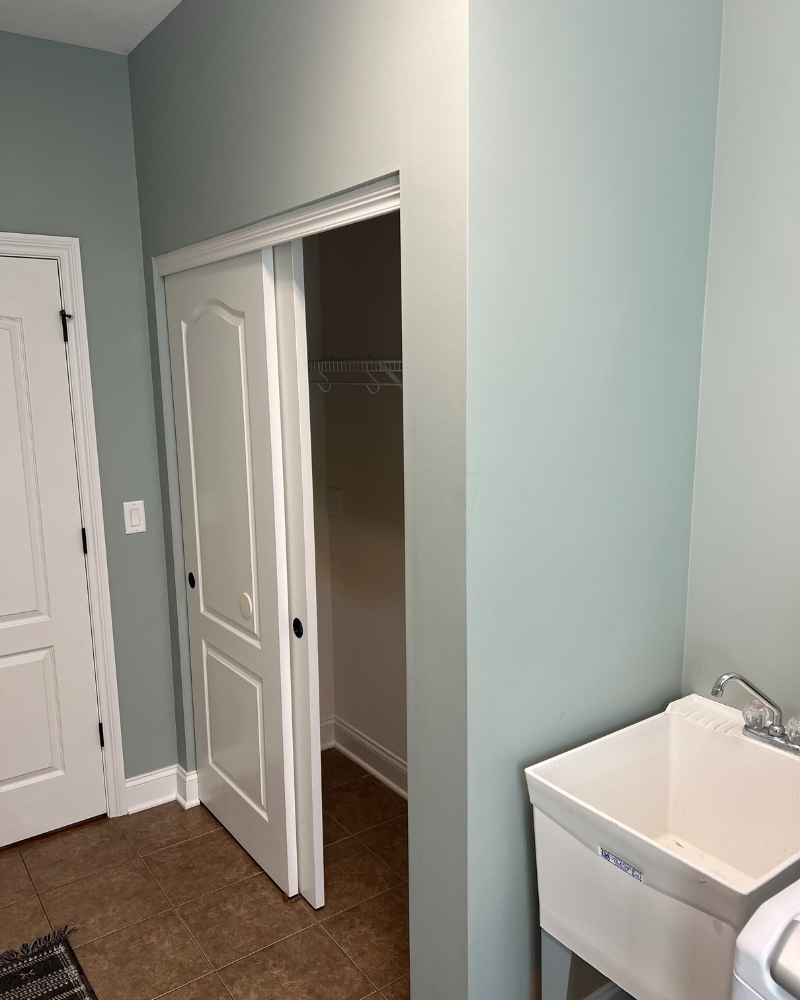

Laundry rooms are often overlooked when it comes to design, but Mike saw potential in his unused wall space.
His goal was to create a built-in cabinetry system that looked high-end, but could be built affordably with careful planning and quality materials.
He started by constructing his own cabinet boxes, then ordered custom Revere cabinet doors from CabinetNow to complete the look. The Revere style was the perfect match — detailed enough to feel classic, but simple enough to complement the room’s crisp white finish.

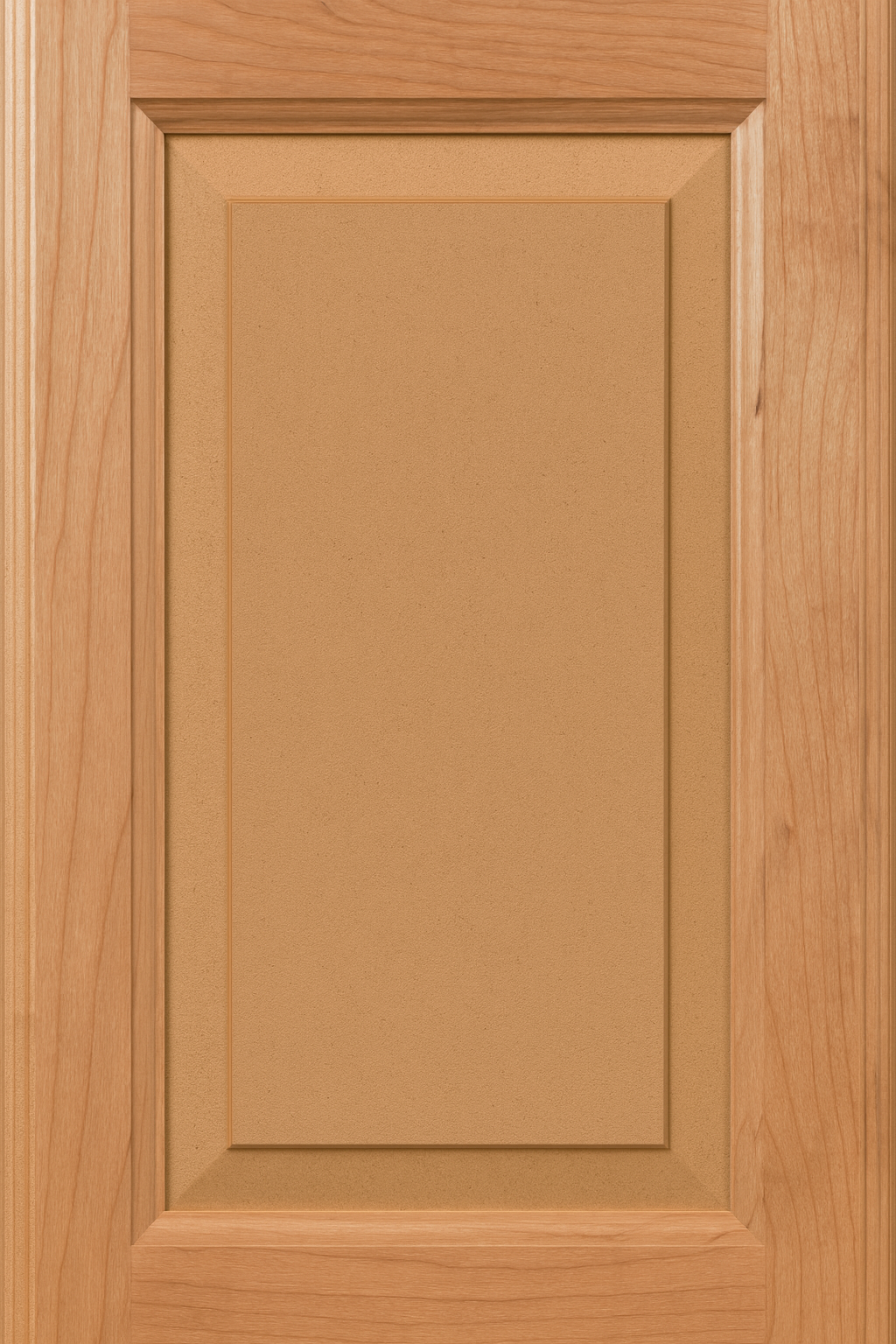

Each door was crafted from a paintable hardwood frame with an MDF panel, giving Mike a smooth, professional-quality surface that’s ideal for custom paint.
Measuring Cabinets Perfectly
A step-by-step guide to measuring for new cabinet doors
Accuracy is everything when it comes to custom cabinet doors for laundry rooms or any built-in project. Measuring precisely ensures your new doors fit seamlessly, creating that polished, made-to-order look. Here’s how to get it right:
1. Measure Each Opening Twice
Use a reliable tape measure and record each opening to the nearest 1/16 of an inch. Note every measurement as width × height—for example, 14" × 30". Double-check each one to prevent costly mistakes.
2. Add for Overlay
Most doors are ordered with a ½” overlay. Add 1 inch to both the width and height of your opening. For example, a 14" × 30" opening becomes a 15" × 31" cabinet door. This ensures a clean, even overlay on all sides.
3. Calculate for Split Doors
For openings wider than 24”, use two doors. Add 1" to the total width, divide by 2, and subtract 1/16” for spacing. Example: (36" + 1") ÷ 2 – 1/16" = 18 7/16"
4. Double-Check and Record Clearly
Once all measurements are complete, review them at least twice. Highlight or underline your final order sizes and quantities. This step prevents confusion when inputting your details into the order form.
5. Account for Inset Doors (If Applicable)
If you’re installing inset cabinet doors, subtract 1/8” from the opening size all around. This ensures proper clearance and smooth operation within the cabinet frame.

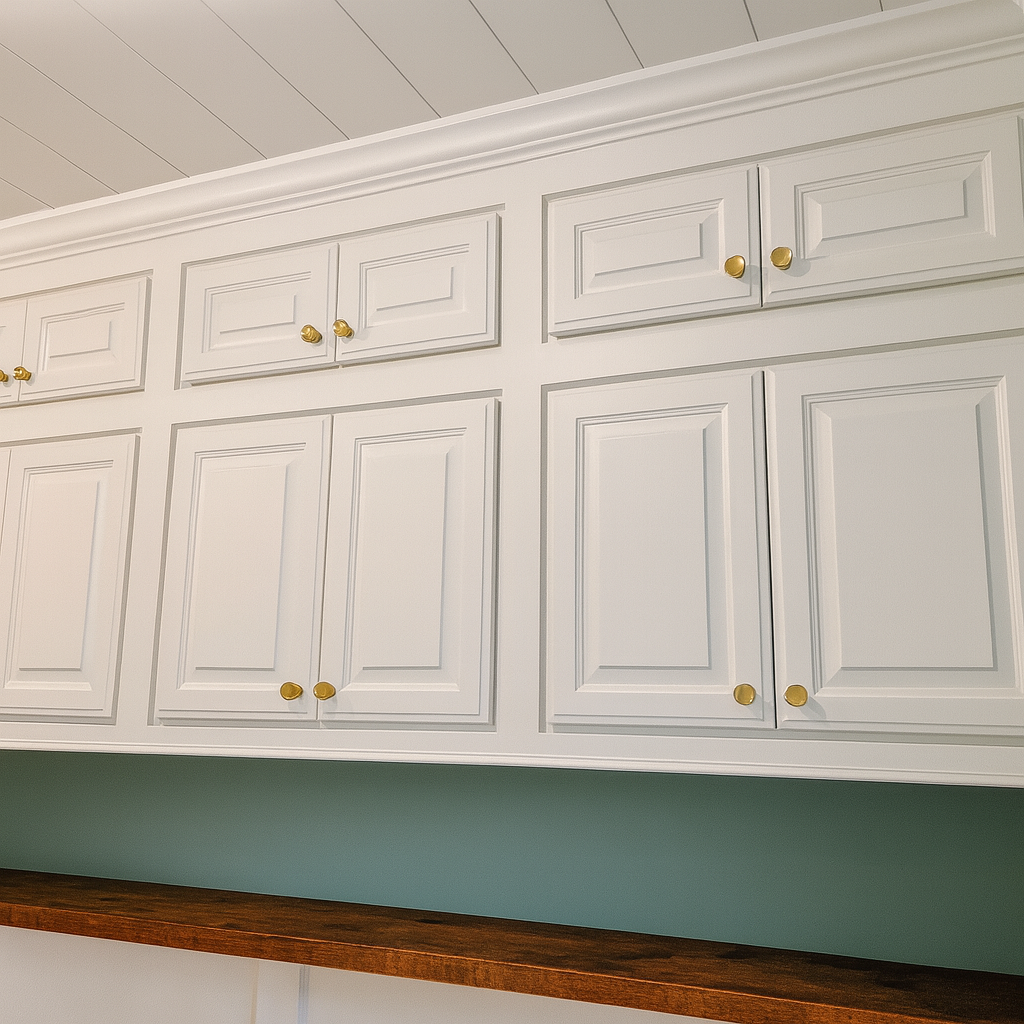

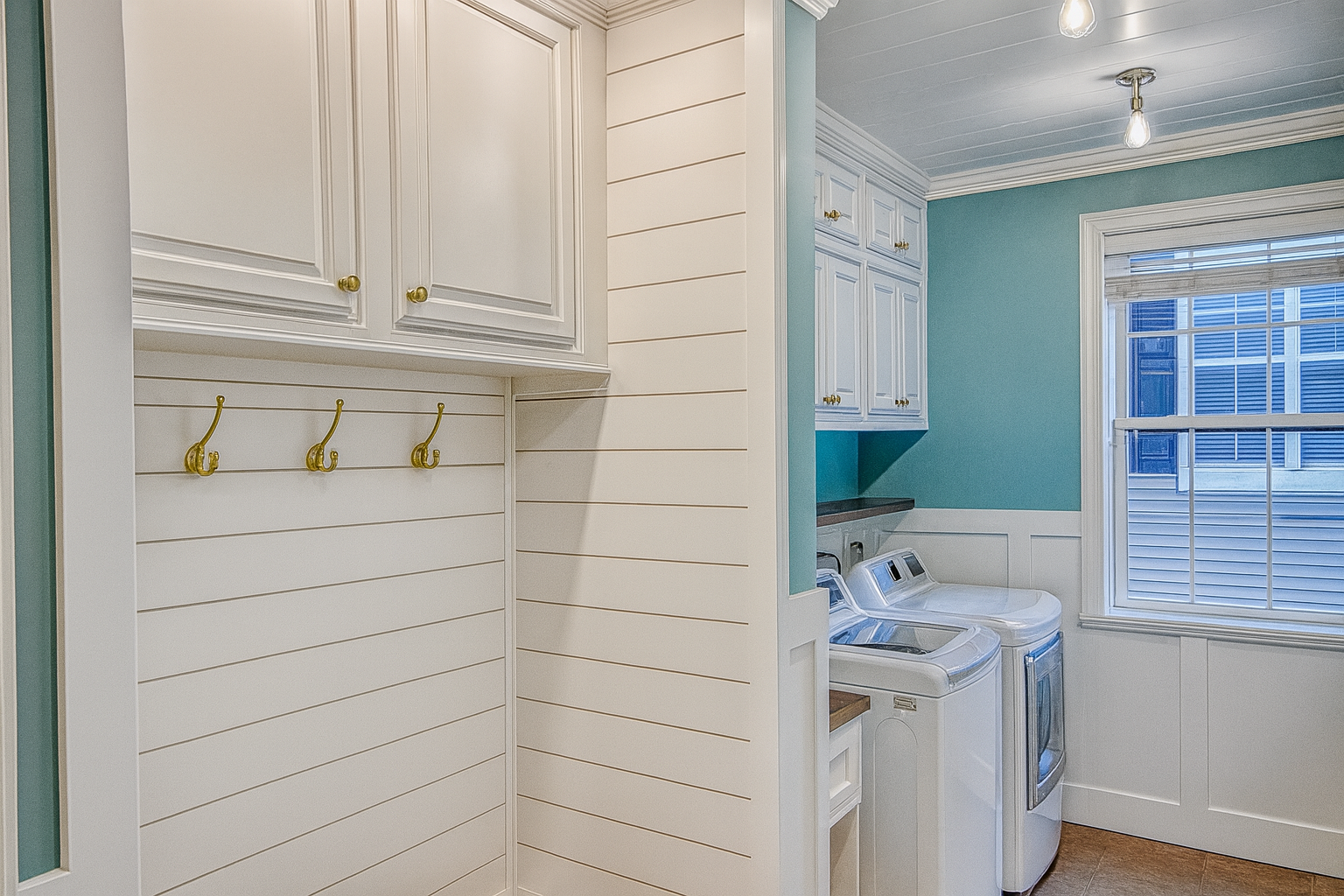

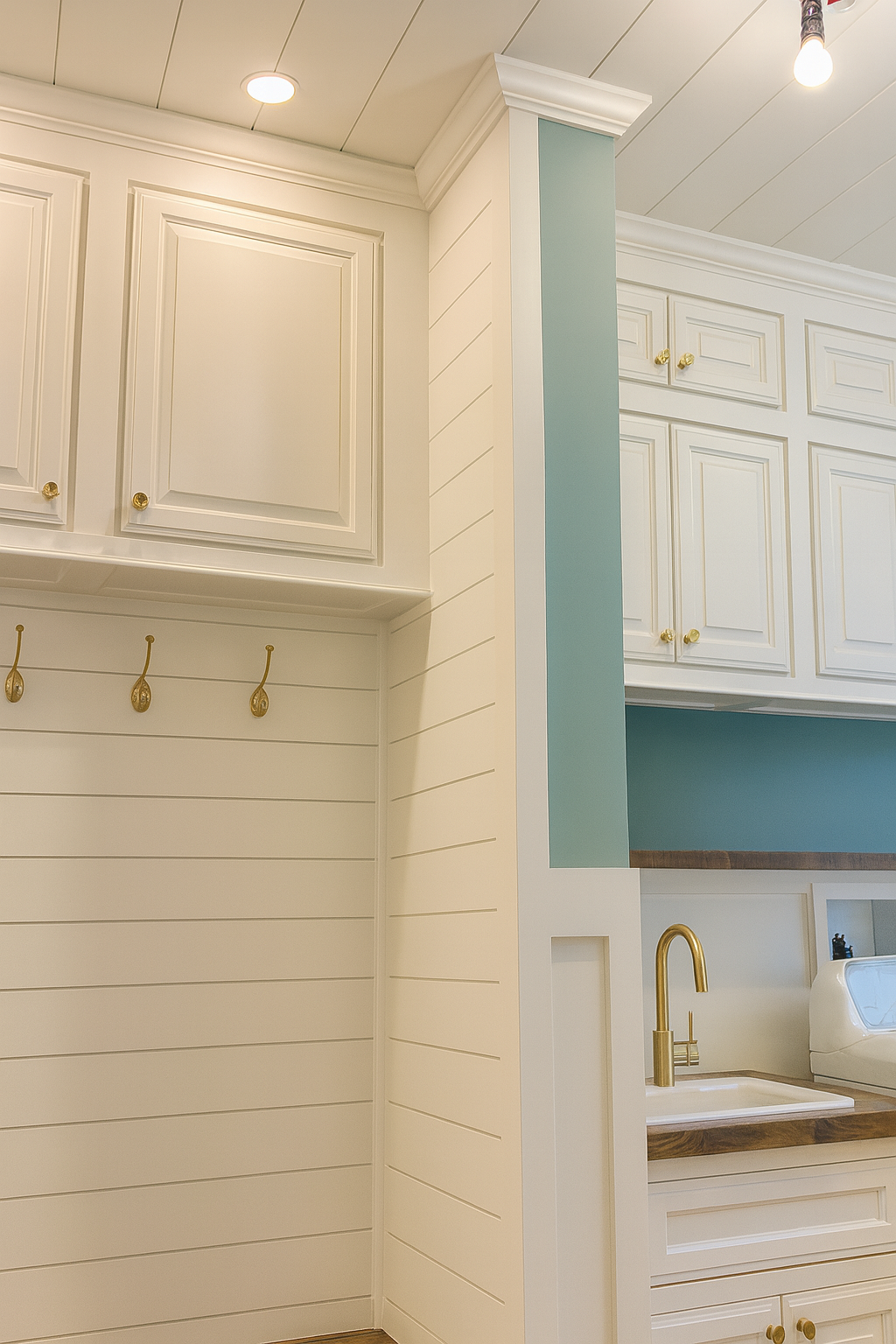

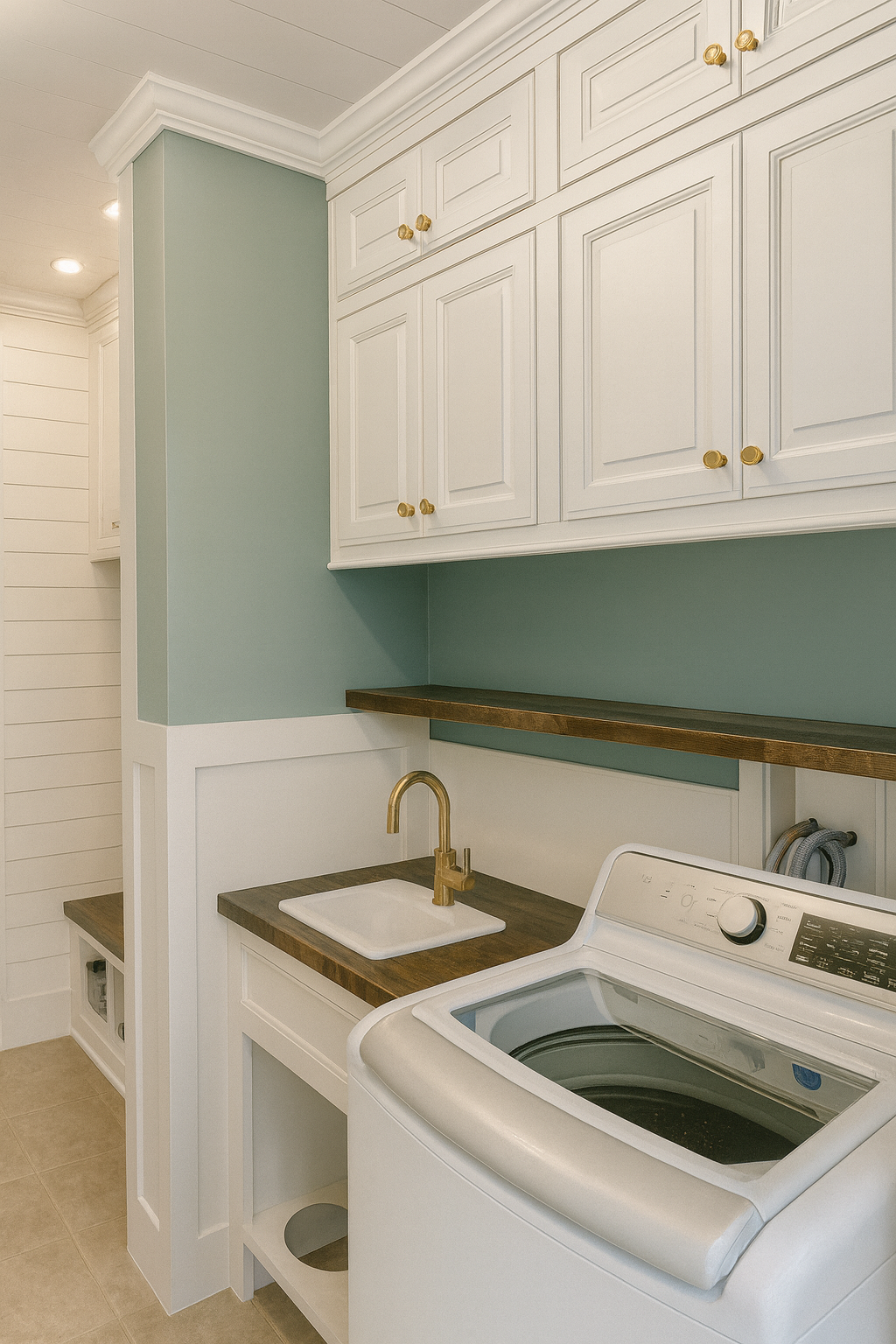

A Fresh White Finish That Brightens the Entire Space

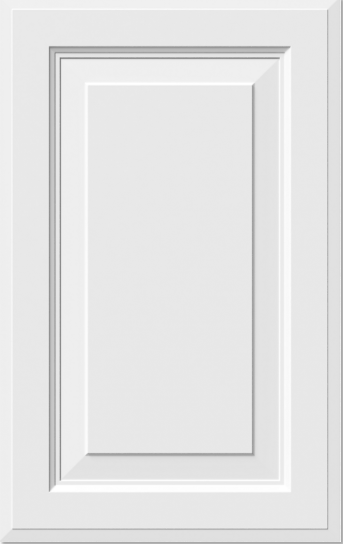

Once assembled, Mike painted the cabinet doors in Pure White, creating a bright, clean contrast to the natural wood tones in the room. The finish brought instant cohesion — giving the space the same crisp sophistication you’d expect from designer laundry built-ins.
The smooth MDF panel ensured even coverage and a professional finish. Paired with soft-close hinges and polished hardware, the result is a space that feels elevated yet practical — a hardworking laundry built-in that’s easy to maintain and timeless in style.
Why Revere Cabinet Doors Work So Well for Laundry Rooms

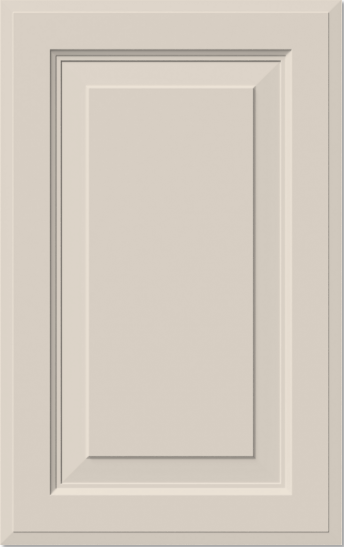

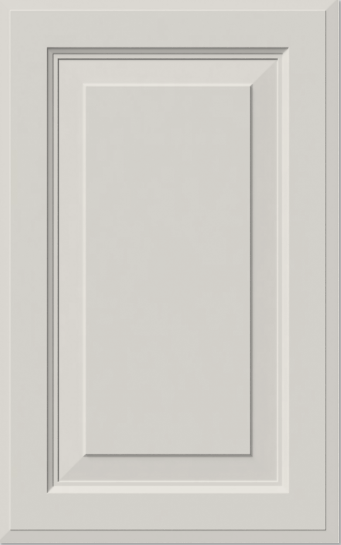

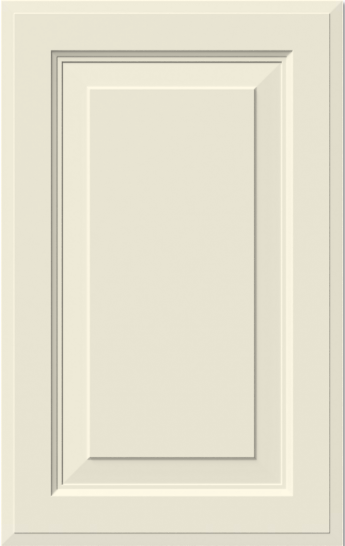

The Revere cabinet door is a customer favorite for both kitchens and laundry spaces because of its balanced design — raised center panel for visual interest, but minimal enough to fit modern spaces.
In laundry rooms, where humidity and daily wear are common, CabinetNow’s hardwood frame and MDF panel construction delivers long-term durability and a smooth finish for paint-grade projects.
When paired with custom boxes or even existing frames, these doors offer the perfect upgrade for DIY laundry custom built-ins.
A Budget-Friendly Built-In That Feels Designer
With careful planning, measuring, and craftsmanship, Mike’s project shows that you don’t need a massive budget to achieve a designer-quality space. His custom laundry built-ins combine function, precision, and timeless appeal — a reminder that even practical spaces deserve thoughtful design.
Quote Breakdown
Final project total: $1,089.52
Order Details
Total Items: 14
Cabinet Style: Revere Cabinet Doors (3/4” thick)
Material: MDF Panel / Paintable Hardwood Frame
Finish: Painted in Pure White (DIY)
2 × Revere Cabinet Doors — $232.14
| Width: | 19.875” |
| Height: | 26.5” |

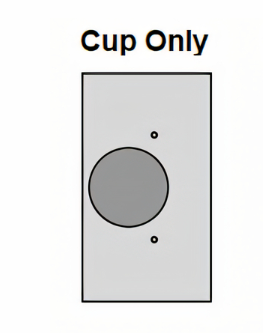

| Bore Options: | Pattern U – Cup Only – 3mm from Edge (+$10) |
| Glass Options: | None |
| Stops for Glass: | None |
| Outside Edge: | Default |
6 × Revere Cabinet Doors — $191.58
| Width: | 12.8125” |
| Height: | 8.5” |
| Bore Options: | Pattern U – Cup Only – 3mm from Edge (+$10) |
| Glass Options: | None |
| Stops for Glass: | None |
| Outside Edge: | Default |
6 × Revere Cabinet Doors — $377.40
| Width: | 12.8125” |
| Height: | 20.5” |
| Bore Options: | Pattern U – Cup Only – 3mm from Edge (+$10) |
| Glass Options: | None |
| Stops for Glass: | None |
| Outside Edge: | Default |
Order Summary
| Subtotal | $801.12 |
| Shipping | $224.31 |
| Illinois Sales Tax | $64.09 |
| Grand Total | $1,089.52 |
